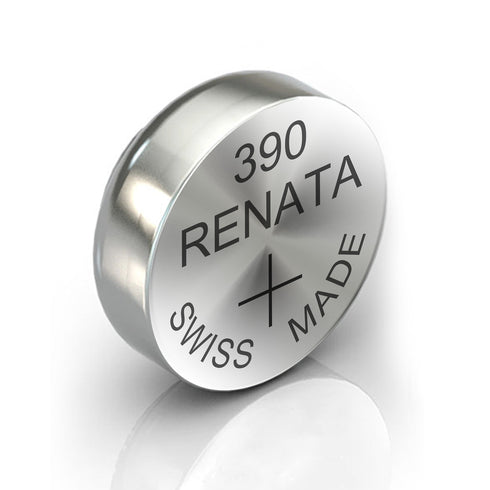

5X Renata 390 Watch Battery Swiss Made Batteries Sr1130Sw V390 D-390 603 280-24 Sb-Au Sr54 Sr1130 Silver Oxide 1.55V Coin Cell


Renata

5xUK_RENATA_390

9994 In Stock

Regular price £3.37

Renata 390 Swiss Made Lithium Button/Coin Cell Watch Battery SR1130SW, 0% Mercury free with Long Expiry date

Renata 390 Swiss Made Lithium Coin Cell Battery SR1130SW

Renata 390 SR1130SW Watch Battery, Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long lasting, low voltage power source.Thanks to its close association with Swiss watch industry, RENATA has first-hand knowledge of what a high quality watch battery must stand for.

Specifications:-
  • Chemical system: Zinc / Monovalent Silver Oxide, low drain
  • Nominal Voltage:1,55 V
  • Capacity: 60 mAh, Discharge over 15 kW at 20°C to 0,9 V
  • Operating Temperature* : -10°C – 60°C
  • Self Discharge: Less than 5% per year at 20°C
  • Weight: ~1,16 g
Dimensions(according IEC 60086-3):-
  • Diameter: 11,60 mm (0,457“)
  • Height: 3,05 mm (0,120“)
Discharge Curve:-
  • Constant Load: 15 kW
  • Starting Drain: 104 μA
  • Temperature: 20°C
Features:-
  • an optimised volume/capacity ratio
  • dimensional precision and stability
  • high capacity retention on storage (low self-discharge)
  • excellent reliability thanks to a uniformly high quality level
  • state of the art leakproofness thanks to a  sophisticated sealing process
  • constant availability

Includes:

  • 5 x Single Renata 390 SR1130SW  Batteries.

Renata 390 Swiss Made Lithium Coin Cell Battery SR1130SW
Renata 390
