5X Renata Watch Battery Swiss Made Batteries 315 Sr716Sw V315 614 Ha 280-56 Sb-At Sr67 Sr716 Silver Oxide 1.55V


Renata

5xUK_RENATA_315

9997 In Stock

Regular price £3.07

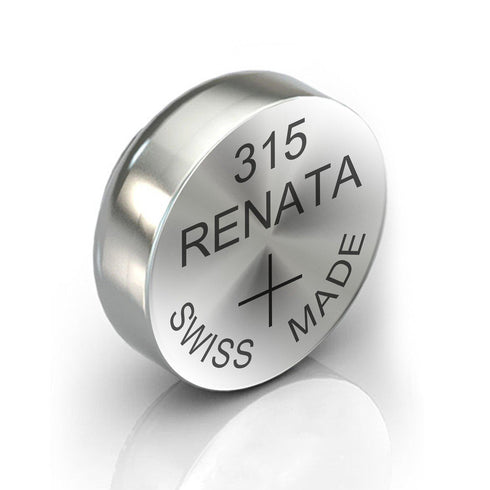

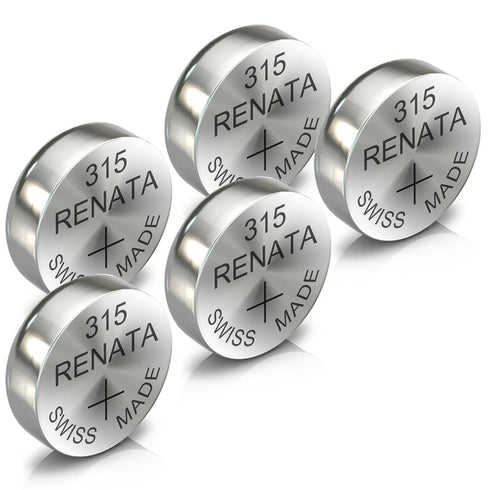

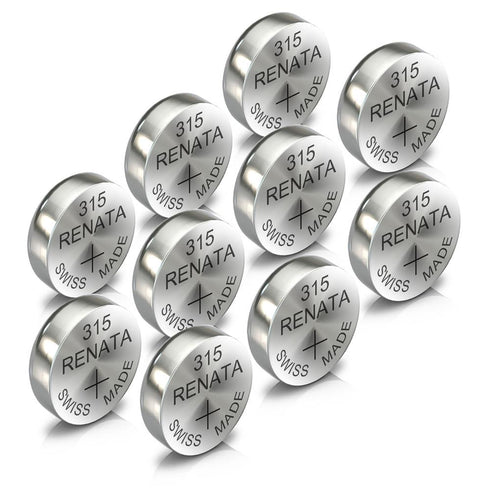

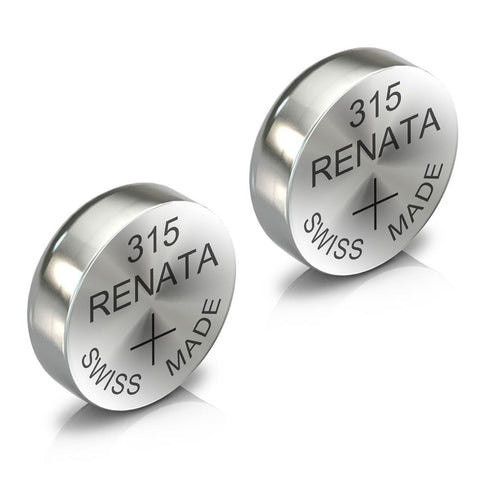

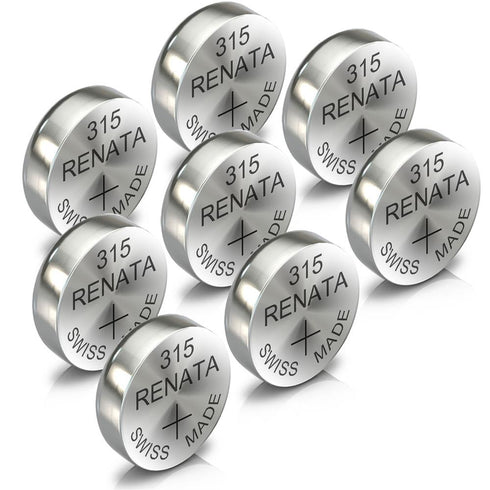

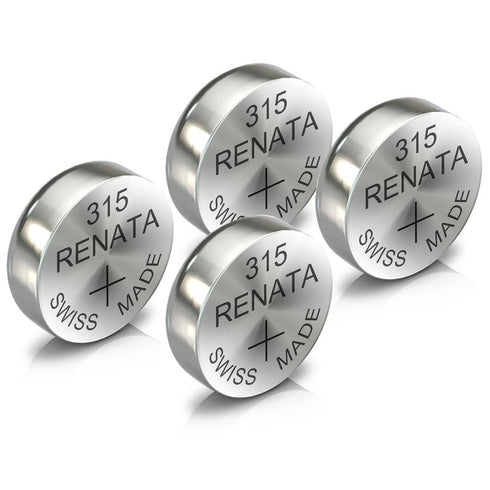

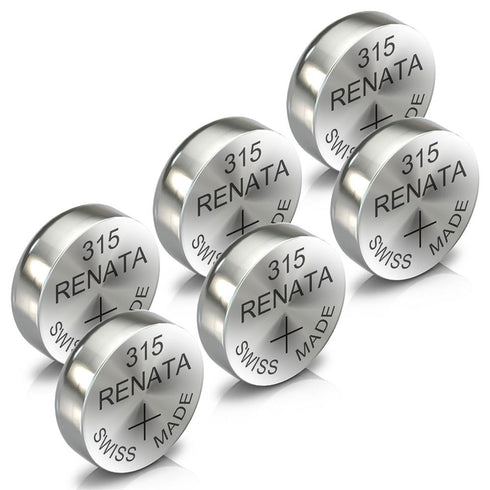

Renata 315 Swiss Made Lithium Button/Coin Cell Watch Battery SR716SW, 0% Mercury free with Long Expiry date

Renata 315 Swiss Made Lithium Coin Cell Battery SR716SW

Renata 315 SR716SW Watch Battery, Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long lasting, low voltage power source.Thanks to its close association with Swiss watch industry, RENATA has first-hand knowledge of what a high quality watch battery must stand for.

Specifications:-
  • Chemical system: Zinc / Monovalent Silver Oxide, low drain
  • Nominal Voltage:1,55 V
  • Capacity: 23 mAh, Discharge over 47 kW at 20°C to 1,2 V
  • Operating Temperature* : -10°C – 60°C
  • Self Discharge: Less than 5% per year at 20°C
  • Weight: ~0,33 g
Dimensions(according IEC 60086-3):-
  • Diameter: 7,90 mm (0,311“)
  • Height: 1,65 mm (0,065“)
Discharge Curve:-
  • Constant Load: 47 kW
  • Starting Drain: 32,9 μA
  • Temperature: 20°C
Features:-
  • an optimised volume/capacity ratio
  • dimensional precision and stability
  • high capacity retention on storage (low self-discharge)
  • excellent reliability thanks to a uniformly high quality level
  • state of the art leakproofness thanks to a  sophisticated sealing process
  • constant availability

Includes:

  • 5 x Single Renata 315 SR716SW  Batteries.

Renata 315 Swiss Made Lithium Coin Cell Battery SR716SW

Renata 315
