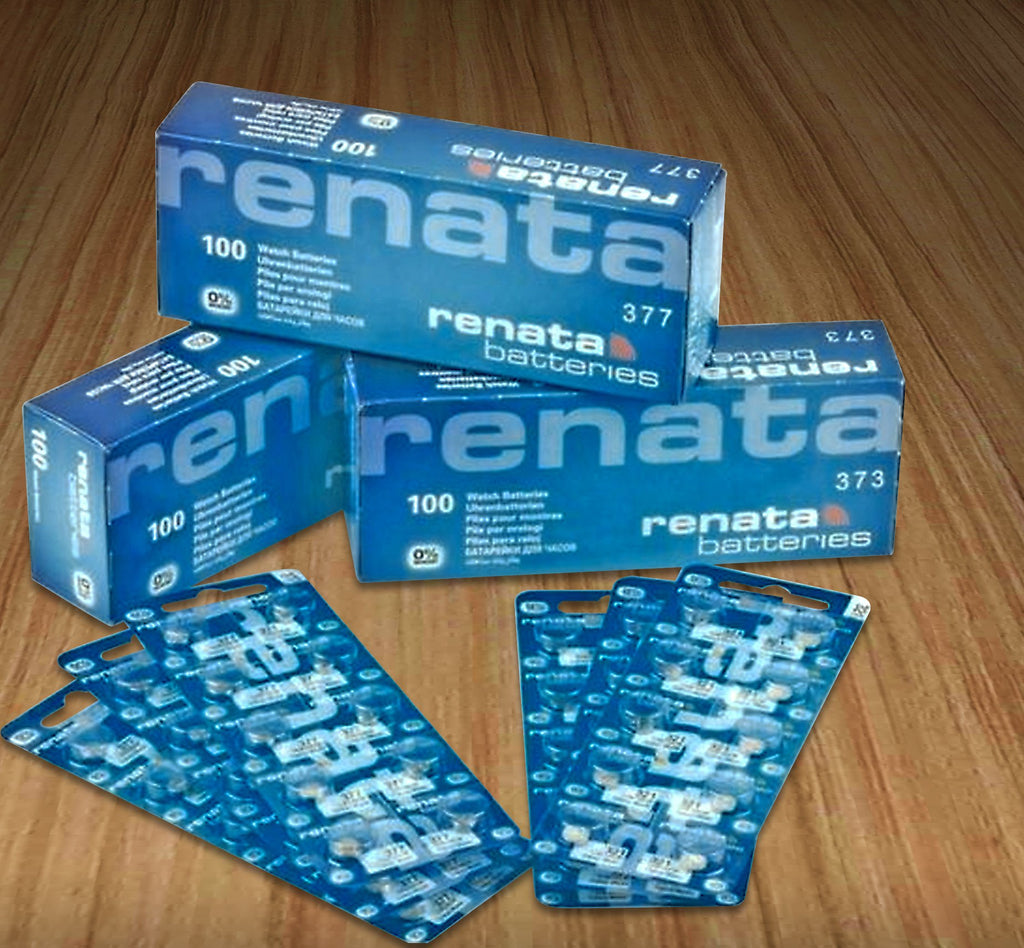

Renata Watch Battery Cross Reference Guide & Detail Description Chart

Renata Watch Battery Cross Reference Guide & Renata Watch Battery Detail Description Chart

The watch battery cross reference chart is easy to use. Find the brand of your battery, then follow it down your battery model. The equivalent battery will be at the beginning of that row. Click on the blue link to go to your battery options and purchase your replacement.

If you are having a hard time determining your battery, measure the width of the battery and then the height. Use the dimensions against the Dimensions column to find the battery that you need. You can also use a micrometre to measure the inside of a battery cavity to find out which battery you need.

The list below will allow you to cross-reference your battery number to find the Renata number you will need to use on the shopping cart. Once you know the battery reference number, enter it in the search along the top of our website to quickly take you to the battery details. For WATCH BATTERY TYPES, BRANDS, SIZES, BATTERY CROSS REFERENCE GUIDE

Changing your Watch Battery is a pain.

It seems, the cheaper the watch, the harder it is to change. And what makes it even more difficult is the fact that there are hundreds of different watch batteries. They come in different thicknesses, sizes, widths, it causes a lot of confusion and frustration. What’s even funnier is the fact that a lot of watch batteries (or cells) look alike, but aren’t.

is anyone supposed to know what’s the correct size for your watch? Pull out your old dead battery from your watch and look at it. Chances are, there’s a lot of gibberish on that battery (And some watches don’t even list a battery number on them at all, in that case, use a watch battery selector).

So what can you do to find the correct battery?

Convert it! (Get great deals on watch batteries from TradeNRG here.)

Below is a conversion chart, or cross reference guide for the most common watch battery types. Both regular (silver oxide and mercury) and lithium batteries too. Take your watch battery number, look it up on the chart to locate the conversion number. Then go into any jewellery store, or Amazon, and buy one (just about any jewellery store, Walmart, Walgreens, Kroger… sells watch batteries).

Note: Some batteries will work for multiple battery numbers. So if they’re out of one battery, you can always use the other. I’ll list these at the end of the post.

Here they are. The most common watch batteries, their conversion numbers and voltage. (P.S. you can also purchase watch battery sets, which have multiple battery sizes)

Renata 301 Watch Battery Replacement :

Renata Watch Battery Swiss Made Batteries 301 Sr43Sw V301 D-301 226 280-01 Sb-A8 Sr1142 Silver Oxide 1.55V, 0% Mercury free with Long Expiry date

Renata 301 SR43SW Watch Battery, Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long-lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, RENATA has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

Features:-

• an optimised volume/capacity ratio
• dimensional precision and stability
• high capacity retention on storage (low self-discharge)
• excellent reliability thanks to a uniformly high-quality level
• state of the art leakproofness thanks to a  sophisticated sealing process
• constant availability

Includes:

1 x Renata 301 SR1142SW Watch Battery.

Renata 303 Watch Battery Replacement :

Renata Watch Battery Swiss Made Batteries 303 Sr44Sw V303 D A 280-08 Sb-A9 Sr44 Sr1154 Silver Oxide 1.55V, 0% Mercury free with Long Expiry date

Renata 303 SR44SW Watch Battery, Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long-lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, RENATA has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

Features:-

• an optimised volume/capacity ratio
• dimensional precision and stability
• high capacity retention on storage (low self-discharge)
• excellent reliability thanks to a uniformly high-quality level
• state of the art leakproofness thanks to a  sophisticated sealing process
• constant availability

Includes:

1 x Renata 303 SR1154SW Watch Battery.

Renata 309 Watch Battery Replacement :

Renata Watch Battery Swiss Made Batteries 309 Sr754Sw V309 D 70T Sr48 Sr754 Silver Oxide 1.55V, 0% Mercury free with Long Expiry date

Renata 309 SR754SW Watch Battery, Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, RENATA has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

Features:-

• an optimised volume/capacity ratio
• dimensional precision and stability
• high capacity retention on storage (low self-discharge)
• excellent reliability thanks to a uniformly high-quality level
• state of the art leakproofness thanks to a  sophisticated sealing process
• constant availability

Includes:

1 x Renata 309 SR754SW Watch Battery.

Renata 315 Watch Battery Replacement :

Renata Watch Battery Swiss Made Batteries 315 Sr716Sw V315 614 Ha 280-56 Sb-At Sr67 Sr716 Silver Oxide 1.55V

Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, RENATA has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

Features:

• An optimized volume/capacity ratio
• Dimensional precision and stability
• High capacity retention on storage (low self-discharge)
• Excellent reliability thanks to a uniformly high-quality level
• State of the art leak proofness thanks to a sophisticated sealing process
• Constant availability

Includes:

1x Renata 315 Watch Battery SR716SW

Renata 317 Watch Battery Replacement :

Renata 317 Sr516Sw Watch Battery Swiss Made Batteries V317 616 Ca 280-58 Sb-Ar Sr62 Sr516 Silver Oxide 1.55V

Renata 317 SR516SW Watch Battery, Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long-lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, RENATA has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

• Chemical system: Zinc / Monovalent Silver Oxide, low drain
• Nominal Voltage:1,55 V
• Capacity: 23 mAh, Discharge over 47 kW at 20°C to 1,2 V
• Operating Temperature* : 0°C €“ 60°C
• Self Discharge: Less than 10% per year at 20°C
• Weight: ~0.33 g

Dimensions(according IEC 60086-3):-


• Diameter: 7.90 mm (0.311")
• Height: 1.65 mm (0,065")

Discharge Curve:-


• Constant Load: 47 kW
• Starting Drain: 32.9 μA
• Temperature: 20°C

 Features:-

• an optimised volume/capacity ratio
• dimensional precision and stability
• high capacity retention on storage (low self-discharge)
• excellent reliability thanks to a uniformly high-quality level
• state of the art leakproofness thanks to a  sophisticated sealing process
• constant availability

Includes:

1 x Renata 317 SR516SW Watch Battery.

Renata 319 Watch Battery Replacement :

Renata Watch Battery Swiss Made Batteries 319 Sr527Sw V319 D-319 615 280-60 Sb-Ae/De Sr64 Sr527 Silver Oxide 1.55V

Renata 319 Swiss Made Button/Coin Cell Watch Battery SR527SW, 0% Mercury free with Long Expiry date

Renata 319 SR527SW Watch Battery, Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, RENATA has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

• Chemical system: Zinc / Monovalent Silver Oxide, low drain
• Nominal Voltage:1,55 V
• Capacity: 80 mAh, Discharge over 20 kW at 20°C to 1,2 V
• Operating Temperature* : 0°C €“ 50°C
• Self Discharge: Less than 5% per year at 20°C
• Weight: ~1.06 g

Dimensions(according IEC 60086-3):-


• Diameter: 7.90 mm (0.311")
• Height: 5.40 mm (0.213")

Discharge Curve:-


• Constant Load: 20 kW
• Starting Drain: 78 μA
• Temperature: 20°C

Features:-

• an optimised volume/capacity ratio
• dimensional precision and stability
• high capacity retention on storage (low self-discharge)
• excellent reliability thanks to a uniformly high-quality level
• state of the art leakproofness thanks to a  sophisticated sealing process
• constant availability

Includes:

1 x Renata 319 SR527SW Watch Battery.

Renata 321 Watch Battery Replacement :

Renata 321 Sr616Sw Swiss Made Watch Battery Silver Oxide Button Coin Cell Watch Battery V321 611 Da 280-73 Sb-Af/Df Sr65 Sr616 1.55V Watch Batteries, 0% Mercury free with Long Expiry date

Renata 321 SR616SW Watch Battery, Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, RENATA has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

Features:-

• an optimised volume/capacity ratio
• dimensional precision and stability
• high capacity retention on storage (low self-discharge)
• excellent reliability thanks to a uniformly high-quality level
• state of the art leakproofness thanks to a  sophisticated sealing process
• constant availability

Includes:

1 x Renata 321 SR616SW Watch Battery.

Renata 329 Watch Battery Replacement :

Renata Watch Battery Swiss Made Batteries 329 Sr731Sw V329 Silver Oxide 1.55V, 0% Mercury free with Long Expiry date.

Renata 329 SR731SW Watch Battery, Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, RENATA has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

Features:-

• an optimised volume/capacity ratio
• dimensional precision and stability
• high capacity retention on storage (low self-discharge)
• excellent reliability thanks to a uniformly high-quality level
• state of the art leakproofness thanks to a  sophisticated sealing process
• constant availability

Includes:

1 x Renata 329 SR731SW Watch Battery.

Renata 335 Watch Battery Replacement :

Renata 335 SR512SW Renata Watch Batteries Swiss Made Silver Oxide 1.55V Renata SR512SW Watch Battery V335 622 280-68 Sb-Ab 0% Mercury free with Long Expiry date

Renata 335 SR512SW Watch Battery, Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, RENATA has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

Features:-

• an optimised volume/capacity ratio
• dimensional precision and stability
• high capacity retention on storage (low self-discharge)
• excellent reliability thanks to a uniformly high-quality level
• state of the art leakproofness thanks to a  sophisticated sealing process
• constant availability

Includes:

Renata 335 SR512SW Watch Battery.

Renata 337 Watch Battery Replacement :

Renata 337 Watch Battery Swiss Made Button Coin Cell Batteries Renata 337 V337 SR416SW Silver Oxide 1.55V,0% Mercury free with Long Expiry date

Renata 337 SR416SW Watch Battery, Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, RENATA has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

Features:-

• an optimised volume/capacity ratio
• dimensional precision and stability
• high capacity retention on storage (low self-discharge)
• excellent reliability thanks to a uniformly high-quality level
• state of the art leakproofness thanks to a  sophisticated sealing process
• constant availability

Includes:

Renata 337 SR416SW Watch Battery.

Renata 339 Watch Battery Replacement :

Renata 339 Watch Battery Swiss Made SR614SW V339 1.55V Button/Coin Cell Silver Oxide Watch Battery,0% Mercury free with Long Expiry date

Renata 339 SR614SW Watch Battery, Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, RENATA has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

Features:-

• an optimised volume/capacity ratio
• dimensional precision and stability
• high capacity retention on storage (low self-discharge)
• excellent reliability thanks to a uniformly high-quality level
• state of the art leakproofness thanks to a  sophisticated sealing process
• constant availability

Includes:

Renata 339 SR614SW Watch Batteries.

Renata 341 Watch Battery Replacement :

Renata 341 Swiss Made Silver Oxide Button Coin Cell Watch Battery SR714SW  V341 627 1.55V,0% Mercury free with Long Expiry date

Renata 341 SR714SW Watch Battery, Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, RENATA has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

Features:-

• an optimised volume/capacity ratio
• dimensional precision and stability
• high capacity retention on storage (low self-discharge)
• excellent reliability thanks to a uniformly high-quality level
• state of the art leakproofness thanks to a  sophisticated sealing process
• constant availability

Includes:

Renata 341 SR714SW Watch Batteries.

Renata 344 Watch Battery Replacement :

Renata Watch Battery Swiss Made Batteries 344 SR1136SW V344 Sr42 Sr1136 Silver Oxide 1.55V, 0% Mercury free with Long Expiry date

Renata 344 SR1136SW Watch Battery, Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, RENATA has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

Features:-

• an optimised volume/capacity ratio
• dimensional precision and stability
• high capacity retention on storage (low self-discharge)
• excellent reliability thanks to a uniformly high-quality level
• state of the art leakproofness thanks to a  sophisticated sealing process
• constant availability

Includes:

Renata 344 SR1136SW Watch Battery.

Renata 346 Watch Battery Replacement :

Renata Watch Battery Swiss Made Batteries 346 Sr712Sw V346 628 280-66 Sb-Dh Silver Oxide 1.55V, 0% Mercury free with Long Expiry date

Renata 346 SR712SW Watch Battery, Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, Renata has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

Features:-

• an optimised volume/capacity ratio
• dimensional precision and stability
• high capacity retention on storage (low self-discharge)
• excellent reliability thanks to a uniformly high-quality level
• state of the art leakproofness thanks to a  sophisticated sealing process
• constant availability

Includes:

Renata 346 SR712SW Watch Batteries.

Renata 350 Watch Battery Replacement :

Renata Watch Battery Swiss Made Silver Oxide Button/Coin Cell Watch Batteries 350 V350 604 Sr42 Sr1136W 1.55V, 0% Mercury free with Long Expiry date

Renata 350 SR1136W Watch Battery, Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, RENATA has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

• Chemical system: Zinc / Monovalent Silver Oxide, high drain
• Nominal Voltage:1,55 V
• Capacity: 105 mAh, Discharge over 8.25 kΩ at 20°C to 1,2 V
• Operating Temperature* : -10°C - 60°C
• Self Discharge: Less than 10% per year at 20°C
• Weight: ~1,45 g

Dimensions(according IEC 60086-3):-


• Diameter: 11,60 mm (0,457")
• Height: 3,60 mm (0,142")

Discharge Curve:-


• Constant Load: 8.25 kΩ
• Starting Drain: 185 μA
• Temperature: 20°C

Features:-

• an optimized volume/capacity ratio
• dimensional precision and stability
• high capacity retention on storage
• excellent reliability thanks to a uniformly high-quality level
• state of the art leakproofness thanks to a  sophisticated sealing process
• constant availability

Includes:

Renata 350 SR1136W Watch Batteries

Renata 357 Watch Battery Replacement :

Renata 357 Sr44W Watch Battery Swiss Made Batteries  V357 D 228 J 280-62 Sb-B9 Sr44 Sr1154W Silver Oxide 1.55V, 0% Mercury free with Long Expiry date

Renata 357 SR1154W Watch Battery, Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, RENATA has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

• Chemical system: Zinc / Monovalent Silver Oxide, high drain
• Nominal Voltage:1,55 V
• Capacity: 190 mAh, Discharge over 5.62 kW at 25°C to 1,2 V
• Operating Temperature* : 0°C - 60°C
• Self Discharge: Less than 10% per year at 20°C
• Weight: ~2,30 g

Dimensions(according IEC 60086-3):-


• Diameter: 11,60 mm (0,457")
• Height: 5,40 mm (0,213")

Discharge Curve:-


• Constant Load: 5,62 kW
• Starting Drain: 272.2 μA
• Temperature: 20°C

Features:-

• an optimised volume/capacity ratio
• dimensional precision and stability
• high capacity retention on storage
• excellent reliability thanks to a uniformly high-quality level
• state of the art leakproofness thanks to a  sophisticated sealing process
• constant availability

Includes:

Renata 357 SR44W Watch Batteries.

Renata 361 Watch Battery Replacement :

Renata Watch Battery Swiss Made Batteries 361 Sr721W V361 D X 280-53 Sb-Bk/Ek Sr58 Sr721 Silver Oxide 1.55V,0% Mercury free with Long Expiry date

Renata 361 SR721W Watch Battery, Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, RENATA has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

• Chemical system: Zinc / Monovalent Silver Oxide, high drain
• Nominal Voltage:1,55 V
• Capacity: 24 mAh, Discharge over 34,8 kW at 20°C to 1,2 V
• Operating Temperature* : -10°C - 60°C
• Self Discharge: Less than 10% per year at 20°C
• Weight: ~0,40 g

Dimensions(according IEC 60086-3):-


• Diameter: 7,90 mm (0,311")
• Height: 2,10 mm (0,083")

Discharge Curve:-


• Constant Load: 34,8 kW
• Starting Drain: 44,5 μA
• Temperature: 20°C

Features:-

• an optimised volume/capacity ratio
• dimensional precision and stability
• high capacity retention on storage
• excellent reliability thanks to a uniformly high-quality level
• state of the art leakproofness thanks to a  sophisticated sealing process
• constant availability

Includes:

Renata 361 SR721W Watch Batteries.

Renata 364 Watch Battery Replacement :

Renata Watch Battery Swiss Made Batteries 364 Sr621Sw V364 D 602 T 280-34 Sb-Ag/Dg Sr60 Sr621 Silver Oxide 1.55V, 0% Mercury free with Long Expiry date

Renata 364 SR621SW Watch Battery, Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long-lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, RENATA has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

Features:-

• an optimised volume/capacity ratio
• dimensional precision and stability
• high capacity retention on storage (low self-discharge)
• excellent reliability thanks to a uniformly high-quality level
• state of the art leakproofness thanks to a  sophisticated sealing process
• constant availability

Includes:

Renata 364 SR621SW Watch Batteries.

Renata 370 Watch Battery Replacement :

Renata Watch Battery Swiss Made Batteries 370 Sr920W V370 D 620 Z 280-51 Sb-Bn Sr69 Sr921 Silver Oxide 1.55V Coin Cell, 0% Mercury free with Long Expiry date

Renata 370 SR920W Watch Battery, Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, RENATA has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

Features:-

• an optimised volume/capacity ratio
• dimensional precision and stability
• high capacity retention on storage
• excellent reliability thanks to a uniformly high-quality level
• state of the art leakproofness thanks to a  sophisticated sealing process
• constant availability

Includes:

Renata 370 SR920W Watch Battery.

Renata 373 Watch Battery Replacement :

Renata Watch Battery Swiss Made Batteries 373 Sr916Sw V373 617 Wa 280-45 Sb-Aj/Dj Sr68 Sr916 Silver Oxide 1.55V Coin Cell, 0% Mercury free with Long Expiry date

Renata 373 SR916SW Watch Battery, Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, RENATA has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

• Chemical system: Zinc / Monovalent Silver Oxide, low drain
• Nominal Voltage:1,55 V
• Capacity: 29 mAh, Discharge over 34.8 kW at 20°C to 1,2 V
• Operating Temperature* : -10°C €“ 60°C
• Self Discharge: Less than 5% per year at 20°C
• Weight: ~0,5 g

Dimensions(according IEC 60086-3):-


• Diameter: 9,50 mm (0,374€œ)
• Height: 1,65 mm (0,065€œ)

Discharge Curve:-


• Constant Load: 34,8 kW
• Starting Drain: 43,4 μA
• Temperature: 20°C

Features:-

• an optimised volume/capacity ratio
• dimensional precision and stability
• high capacity retention on storage (low self-discharge)
• excellent reliability thanks to a uniformly high-quality level
• state of the art leakproofness thanks to a  sophisticated sealing process
• constant availability

Includes:

Renata 373 SR916SW Watch Batteries.

Renata 377 Watch Battery Replacement :

Renata Watch Battery Swiss Made Batteries 377 SR626SW V377 D-377 606 Ba 280-39 Sb-Aw Sr66 Sr626 Silver Oxide 1.55V Coin Cell, 0% Mercury free with Long Expiry date

Renata 377 SR626SW Watch Battery, Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, RENATA has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

• Chemical system: Zinc / Monovalent Silver Oxide, low drain
• Nominal Voltage:1,55 V
• Capacity: 28 mAh, Discharge over 34,8 kΩ at 20°C to 1,2 V
• Operating Temperature *: 0°C - 60°C
• Self Discharge: Less than 5% per year at 20°C
• Weight: ~0,40 g

Dimensions(according IEC 60086-3):-


• Diameter: 6,80 mm (0,268 ")
• Height: 2,60 mm (0,102")

Discharge Curve:-


• Constant Load: 34,8 kΩ
• Starting Drain: 44,8 μA
• Temperature: 20°C

Features:-

• an optimised volume/capacity ratio
• dimensional precision and stability
• high capacity retention on storage (low self-discharge)
• excellent reliability thanks to a uniformly high-quality level
• state of the art leakproofness thanks to a  sophisticated sealing process
• constant availability

Includes:

Renata 377 SR626SW Watch Batteries.

Renata 394 Watch Battery Replacement :

Renata 394 Watch Battery Swiss Made Batteries Sr936Sw V394 D-394 625 280-17 Sb-A4 Sr936 Silver Oxide 1.55V Coin Cell, 0% Mercury free with Long Expiry date

Renata 394 SR936SW Watch Battery, Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long-lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, RENATA has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

• Chemical system: Zinc / Monovalent Silver Oxide, low drain
• Nominal Voltage:1,55 V
• Capacity: 84 mAh, Discharge over 10,0 kW at 20°C to 1,2 V
• Operating Temperature* : -10°C €“ 60°C
• Self Discharge: Less than 5% per year at 20°C
• Weight: ~1,02 g

Dimensions(according IEC 60086-3):-


• Diameter: 9,50 mm (0,374€œ)
• Height: 3,60 mm (0,142€œ)

Discharge Curve:-


• Constant Load: 10,0 kW
• Starting Drain: 156 μA
• Temperature: 20°C

Features:-

• an optimised volume/capacity ratio
• dimensional precision and stability
• high capacity retention on storage (low self-discharge)
• excellent reliability thanks to a uniformly high-quality level
• state of the art leakproofness thanks to a  sophisticated sealing process
• constant availability

Includes:

Renata 394 SR936SW Watch Batteries.

Renata 399 Watch Battery Replacement :

Renata 399 Watch Battery Swiss Made Batteries 399 Sr927W V399 D-399 W 280-44 Sb-Bp/Ep Sr927 Sr57 Silver Oxide 1.55V Coin Cell,0% Mercury free with Long Expiry date

Renata 399 SR927W Watch Battery, Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long-lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, RENATA has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

• Chemical system: Zinc / Monovalent Silver Oxide, high drain
• Nominal Voltage:1,55 V
• Capacity: 55 mAh, Discharge over 22,1 kW at 20°C to 1,2 V
• Operating Temperature* : 0°C €“ 60°C
• Self Discharge: Less than 10% per year at 20°C
• Weight: ~0,76 g

Dimensions(according IEC 60086-3):-


• Diameter: 9,50 mm (0,374€œ)
• Height: 2,70 mm (0,106€œ)

Discharge Curve:-


• Constant Load: 22,1 kW
• Starting Drain: 70,1 μA
• Temperature: 20°C

Features:-

• an optimised volume/capacity ratio
• dimensional precision and stability
• high capacity retention on storage
• excellent reliability thanks to a uniformly high-quality level
• state of the art leakproofness thanks to a  sophisticated sealing process
• constant availability

Includes:

Renata 399 SR927W Watch Batteries.

Renata CR1025 Watch Battery Replacement :

Renata CR1025 Swiss Made Button/Coin Cell Watch Battery, with Long Expiry date

Watch Battery. Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, Lithium 3V, Alkaline 1.5 V, Zinc-air 1.45 V. this offers a suitable power source for any electronic device requiring an ultra-compact, long-lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, Renata CR1025 has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

• Chemical system: Li / MnO2
• Nominal Voltage: 3 V
• Rated Capacity: 30 mAh
• Standard Discharge Current: 0.05 mA
• Max. Cont. Discharge Current: 0.4 mA
• Average Weight: 0.6 g
• Operating Temperature* : -40 - +85 °C
• Self Discharge: < 1% / year

Features:-

• An optimized volume/capacity ratio
• Dimensional precision and stability
• High capacity retention on storage
• Excellent reliability thanks to a uniformly high-quality level
• State of the art leakproofness thanks to a  sophisticated sealing process
• Constant availability

Common Use :

Renata battery generally used in Calculator, Watch, Clocks, LED Lights, Camera, headset, Wireless devices, weight scales, Pins entry devices, Car remote keys, Keyboard, Mouse etc.

Includes:

10 x Single Renata Batteries Renata CR1025

Renata CR1216 Watch Battery Replacement :

Renata CR1216 Swiss Made Button/Coin Cell Watch Battery, with Long Expiry date Christmas Offer Price

Watch Battery. Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, Lithium 3V, Alkaline 1.5 V, Zinc-air 1.45 V. this offers a suitable power source for any electronic device requiring an ultra-compact, long-lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, Renata CR1216 has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

• Chemical system: Li / MnO2
• Nominal Voltage: 3 V
• Rated Capacity: 25 mAh
• Standard Discharge Current: 0.05 mA
• Max. Cont. Discharge Current: 1.0 mA
• Average Weight: 0.7 g
• Operating Temperature* : -30 - +70 °C
• Self Discharge: < 1% / year

Features:-

• An optimized volume/capacity ratio
• Dimensional precision and stability
• High capacity retention on storage
• Excellent reliability thanks to a uniformly high-quality level
• State of the art leakproofness thanks to a  sophisticated sealing process
• Constant availability

Common Use :

Renata battery generally used in Calculator, Watch, Clocks, LED Lights, Camera, headset, Wireless devices, weight scales, Pins entry devices, Car remote keys, Keyboard, Mouse etc.

Includes:

10 x Single Renata Batteries Renata CR1216

Renata CR1220 Watch Battery Replacement :

10x Renata CR1220 Renata Watch battery Swiss Made Coin Cell Lithium 3V Silver Oxide Watch Batteries Pack Of 10, with Long Expiry date Christmas Offer Price

Watch Battery. Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, Lithium 3V, Alkaline 1.5 V, Zinc-air 1.45 V. this offers a suitable power source for any electronic device requiring an ultra-compact, long-lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, Renata CR1220 has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

• Chemical system: Li / MnO2
• Nominal Voltage: 3 V
• Rated Capacity: 38 mAh
• Standard Discharge Current: 0.05 mA
• Max. Cont. Discharge Current: 1.0 mA
• Average Weight: 0.8 g
• Operating Temperature* : -40 - +85 °C
• Self Discharge: < 1% / year

Features:-

• An optimised volume/capacity ratio
• Dimensional precision and stability
• High capacity retention on storage
• Excellent reliability thanks to a uniformly high-quality level
• State of the art leakproofness thanks to a  sophisticated sealing process
• Constant availability

Common Use :

Renata battery generally used in Calculator, Watch, Clocks, LED Lights, Camera, headset, Wireless devices, weight scales, Pins entry devices, Car remote keys, Keyboard, Mouse etc.

Includes:

10 x Renata CR1220 Watch Batteries

Renata CR1225 Watch Battery Replacement :

10x Renata CR1225 Renata Watch battery Swiss Made Coin Cell Lithium 3V Silver Oxide Watch Batteries Pack Of 10, with Long Expiry date Christmass Sale Offer Price

Watch Battery. Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, Lithium 3V, Alkaline 1.5 V, Zinc-air 1.45 V. this offers a suitable power source for any electronic device requiring an ultra-compact, long-lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, Renata CR1225 has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

• Chemical system: Li / MnO2
• Nominal Voltage: 3 V
• Rated Capacity: 48 mAh
• Standard Discharge Current: 0.1 mA
• Max. Cont. Discharge Current: 1.0 mA
• Average Weight: 0.9 g
• Operating Temperature* : -40 - +85 °C
• Self Discharge: < 1% / year

Features:-

• An optimised volume/capacity ratio
• Dimensional precision and stability
• High capacity retention on storage
• Excellent reliability thanks to a uniformly high-quality level
• State of the art leakproofness thanks to a  sophisticated sealing process
• Constant availability

Common Use :

Renata battery generally used in Calculator, Watch, Clocks, LED Lights, Camera, headset, Wireless devices, weight scales, Pins entry devices, Car remote keys, Keyboard, Mouse etc.

Includes:

10 x Renata CR1225 Watch Batteries

Renata CR1616 Watch Battery Replacement :

Genuine New Renata CR1616 Watch battery Swiss Made Coin Cell Lithium 3V Silver Oxide Watch Batteries Pack Of 10 Christmas Offer Price

Watch Battery. Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, Lithium 3V, Alkaline 1.5 V, Zinc-air 1.45 V. this offers a suitable power source for any electronic device requiring an ultra-compact, long-lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, Renata CR1616 has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

• Chemical system: Li / MnO2
• Nominal Voltage: 3 V
• Rated Capacity: 50 mAh
• Standard Discharge Current: 0.1 mA
• Max. Cont. Discharge Current: 1.0 mA
• Average Weight: 1.1 g
• Operating Temperature* : -40 - +85 °C
• Self Discharge: < 1% / year

Features:-

• An optimized volume/capacity ratio
• Dimensional precision and stability
• High capacity retention on storage
• Excellent reliability thanks to a uniformly high-quality level
• State of the art leakproofness thanks to a  sophisticated sealing process
• Constant availability

Common Use :

Renata battery generally used in Calculator, Watch, Clocks, LED Lights, Camera, headset, Wireless devices, weight scales, Pins entry devices, Car remote keys, Keyboard, Mouse etc.

Includes:

10 x Renata CR1616 Watch Batteries

Renata CR1620 Watch Battery Replacement :

10x Renata CR1620 Watch Battery Swiss Made Coin Cell Lithium 3V Silver Oxide Watch Batteries Pack Of 10, with Long Expiry date Christmass Sale Offer Price

Watch Battery. Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, Lithium 3V, Alkaline 1.5 V, Zinc-air 1.45 V. this offers a suitable power source for any electronic device requiring an ultra-compact, long-lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, Renata CR1620 has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

• Chemical system: Li / MnO2
• Nominal Voltage: 3 V
• Rated Capacity: 68 mAh
• Standard Discharge Current: 0.1 mA
• Max. Cont. Discharge Current: 1.0 mA
• Average Weight: 1.2 g
• Operating Temperature* : -40 - +85 °C
• Self Discharge: < 1% / year

Features:-

• An optimized volume/capacity ratio
• Dimensional precision and stability
• High capacity retention on storage
• Excellent reliability thanks to a uniformly high-quality level
• State of the art leakproofness thanks to a  sophisticated sealing process
• Constant availability

Common Use :

Renata battery generally used in Calculator, Watch, Clocks, LED Lights, Camera, headset, Wireless devices, weight scales, Pins entry devices, Car remote keys, Keyboard, Mouse etc.

Includes:

10 x Renata CR1620 Watch Batteries

Renata CR1632 Watch Battery Replacement :

Genuine New Renata CR1632 Watch battery Swiss Made Coin Cell Lithium 3V Silver Oxide Watch Batteries Pack Of 10, with Long Expiry date Christmass Sale Offer Price

Watch Battery. Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, Lithium 3V, Alkaline 1.5 V, Zinc-air 1.45 V. this offers a suitable power source for any electronic device requiring an ultra-compact, long-lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, Renata CR1632 has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

• Chemical system: Li / MnO2
• Nominal Voltage: 3 V
• Rated Capacity: 125 mAh
• Standard Discharge Current: 0.2 mA
• Max. Cont. Discharge Current: 1.5 mA
• Average Weight: 1.8 g
• Operating Temperature* : -40 - +85 °C
• Self Discharge: < 1% / year

Features:-

• An optimized volume/capacity ratio
• Dimensional precision and stability
• High capacity retention on storage
• Excellent reliability thanks to a uniformly high-quality level
• State of the art leakproofness thanks to a  sophisticated sealing process
• Constant availability

Common Use :

Renata battery generally used in Calculator, Watch, Clocks, LED Lights, Camera, headset, Wireless devices, weight scales, Pins entry devices, Car remote keys, Keyboard, Mouse etc.

Includes:

10 x Renata CR1632 Watch Battery

Renata CR2016 Watch Battery Replacement :

Renata CR2016 Battery Swiss Made Silver Oxide Lithium Button/Coin Cell 3V Watch Battery, with Long Expiry date Christmass Sale Offer Price

Watch Battery. Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, Lithium 3V, Alkaline 1.5 V, Zinc-air 1.45 V. this offers a suitable power source for any electronic device requiring an ultra-compact, long-lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, Renata CR2016 has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

• Chemical system: Li / MnO2
• Nominal Voltage: 3 V
• Rated Capacity: 30 mAh
• Standard Discharge Current: 0.05 mA
• Max. Cont. Discharge Current: 0.4 mA
• Average Weight: 0.6 g
• Operating Temperature* : -40 - +85 °C
• Self Discharge: < 1% / year

Features:-

• An optimised volume/capacity ratio
• Dimensional precision and stability
• High capacity retention on storage
• Excellent reliability thanks to a uniformly high-quality level
• State of the art leakproofness thanks to a  sophisticated sealing process
• Constant availability

Common Use :

Renata battery generally used in Calculator, Watch, Clocks, LED Lights, Camera, headset, Wireless devices, weight scales, Pins entry devices, Car remote keys, Keyboard, Mouse etc.

Includes:

10 x Renata CR2016 Watch Battery

Renata CR2025 Watch Battery Replacement :

Renata CR2025 Swiss Made Silver Oxide Button/Coin Cell Watch Battery, with Long Expiry date


Watch Battery. Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, Lithium 3V, Alkaline 1.5 V, Zinc-air 1.45 V. this offers a suitable power source for any electronic device requiring an ultra-compact, long-lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, Renata CR2025 has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

• Chemical system: Li / MnO2
• Nominal Voltage: 3 V
• Rated Capacity: 170 mAh
• Standard Discharge Current: 0.3 mA
• Max. Cont. Discharge Current: 3.0 mA
• Average Weight: 2.3 g
• Operating Temperature* : -40 - +85 °C
• Self Discharge: < 1% / year

Features:-

• An optimized volume/capacity ratio
• Dimensional precision and stability
• High capacity retention on storage
• Excellent reliability thanks to a uniformly high-quality level
• State of the art leakproofness thanks to a  sophisticated sealing process
• Constant availability

Common Use :

Renata battery generally used in Calculator, Watch, Clocks, LED Lights, Camera, headset, Wireless devices, weight scales, Pins entry devices, Car remote keys, Keyboard, Mouse etc.

Includes:


10 x Renata CR2025 Watch Battery

Renata CR2032 Watch Battery Replacement :

10x Renata CR2032 Watch Battery Swiss Made Silver Oxide Lithium Coin Cell 3V Watch Batteries Pack Of 10, with Long Expiry date Christmass Sale Offer Price

Watch Battery. Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, Lithium 3V, Alkaline 1.5 V, Zinc-air 1.45 V. this offers a suitable power source for any electronic device requiring an ultra-compact, long-lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, Renata CR2032 has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

• Chemical system: Li / MnO2
• Nominal Voltage: 3 V
• Rated Capacity: 235 mAh
• Standard Discharge Current: 0.4 mA
• Max. Cont. Discharge Current: 3.0 mA
• Average Weight: 2.8 g
• Operating Temperature* : -40 - +85 °C
• Self Discharge: < 1% / year

Features:-

• An optimised volume/capacity ratio
• Dimensional precision and stability
• High capacity retention on storage
• Excellent reliability thanks to a uniformly high-quality level
• State of the art leakproofness thanks to a  sophisticated sealing process
• Constant availability

Common Use :

Renata battery generally used in Calculator, Watch, Clocks, LED Lights, Camera, headset, Wireless devices, weight scales, Pins entry devices, Car remote keys, Keyboard, Mouse etc.

Includes:

10 x Renata CR2032 Watch Batteries

Renata CR2320 Watch Battery Replacement :

10x Renata CR2320 Watch battery Swiss Made Coin Cell Lithium 3V Silver Oxide Watch Batteries Pack Of 10, with Long Expiry date

Watch Battery. Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, Lithium 3V, Alkaline 1.5 V, Zinc-air 1.45 V. this offers a suitable power source for any electronic device requiring an ultra-compact, long-lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, Renata CR2320 has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

• Chemical system: Li / MnO2
• Nominal Voltage: 3 V
• Rated Capacity: 150 mAh
• Standard Discharge Current: 0.2 mA
• Max. Cont. Discharge Current: 3.0 mA
• Average Weight: 2.7 g
• Operating Temperature* : -40 - +85 °C
• Self Discharge: < 1% / year

Features:-

• An optimised volume/capacity ratio
• Dimensional precision and stability
• High capacity retention on storage
• Excellent reliability thanks to a uniformly high-quality level
• State of the art leakproofness thanks to a  sophisticated sealing process
• Constant availability

Common Use :

Renata battery generally used in Calculator, Watch, Clocks, LED Lights, Camera, headset, Wireless devices, weight scales, Pins entry devices, Car remote keys, Keyboard, Mouse etc.

Includes:

10 x Renata CR2320 Watch Batteries

Renata CR2325 Watch Battery Replacement :

Renata CR2325 Swiss Made Button/Coin Cell Watch Battery, with Long Expiry date

Watch Battery. Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, Lithium 3V, Alkaline 1.5 V, Zinc-air 1.45 V. this offers a suitable power source for any electronic device requiring an ultra-compact, long-lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, Renata CR2325 has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

• Chemical system: Li / MnO2
• Nominal Voltage: 3 V
• Rated Capacity: 190 mAh
• Standard Discharge Current: 0.3 mA
• Max. Cont. Discharge Current: 3.0 mA
• Average Weight: 3.0 g
• Operating Temperature* : -40 - +85 °C
• Self Discharge: < 1% / year

Features:-

• An optimised volume/capacity ratio
• Dimensional precision and stability
• High capacity retention on storage
• Excellent reliability thanks to a uniformly high-quality level
• State of the art leakproofness thanks to a  sophisticated sealing process
• Constant availability

Common Use :

Renata battery generally used in Calculator, Watch, Clocks, LED Lights, Camera, headset, Wireless devices, weight scales, Pins entry devices, Car remote keys, Keyboard, Mouse etc.

Includes:

10 x Renata CR2325 Watch Batteries

Renata CR2430 Watch Battery Replacement :

10x Renata CR2430 Watch batteries Swiss Made Coin Cell Lithium 3V Silver Oxide Watch Battery Pack Of 10, with Long Expiry date Christmas Offer Price

Watch Battery. Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, Lithium 3V, Alkaline 1.5 V, Zinc-air 1.45 V. this offers a suitable power source for any electronic device requiring an ultra-compact, long-lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, Renata CR2430 has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

• Chemical system: Li / MnO2
• Nominal Voltage: 3 V
• Rated Capacity: 285 mAh
• Standard Discharge Current: 0.05 mA
• Max. Cont. Discharge Current: 4.0 mA
• Average Weight: 4.1 g
• Operating Temperature* : -40 - +85 °C
• Self Discharge: < 1% / year

Features:-

• An optimised volume/capacity ratio
• Dimensional precision and stability
• High capacity retention on storage
• Excellent reliability thanks to a uniformly high-quality level
• State of the art leakproofness thanks to a  sophisticated sealing process
• Constant availability

Common Use :

Renata battery generally used in Calculator, Watch, Clocks, LED Lights, Camera, headset, Wireless devices, weight scales, Pins entry devices, Car remote keys, Keyboard, Mouse etc.

Includes:

10 x Renata CR2430 Watch Batteries

Renata CR2450N Watch Battery Replacement :

Genuine New Renata CR2450N Watch battery Swiss Made Button/Coin Cell Lithium 3V Silver Oxide Watch Batteries Pack Of 10, with Long Expiry date

Watch Battery. Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, Lithium 3V, Alkaline 1.5 V, Zinc-air 1.45 V. this offers a suitable power source for any electronic device requiring an ultra-compact, long-lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, Renata CR2450N has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

• Chemical system: Li / MnO2
• Nominal Voltage: 3 V
• Rated Capacity: 540 mAh
• Standard Discharge Current: 0.8 mA
• Max. Cont. Discharge Current: 3.0 mA
• Average Weight: 5.9 g
• Operating Temperature* : -40 - +85 °C
• Self Discharge: < 1% / year

Features:-

• An optimised volume/capacity ratio
• Dimensional precision and stability
• High capacity retention on storage
• Excellent reliability thanks to a uniformly high-quality level
• State of the art leakproofness thanks to a  sophisticated sealing process
• Constant availability

Common Use :

Renata battery generally used in Calculator, Watch, Clocks, LED Lights, Camera, headset, Wireless devices, weight scales, Pins entry devices, Car remote keys, Keyboard, Mouse etc.

Includes:

10 x Renata CR2450N Watch Battery

Renata CR2477N Watch Battery Replacement :

Renata CR2477N Swiss Made Button/Coin Cell Watch Battery, with Long Expiry date Christmas Offer Price

Watch Battery. Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, Lithium 3V, Alkaline 1.5 V, Zinc-air 1.45 V. this offers a suitable power source for any electronic device requiring an ultra-compact, long-lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, Renata CR2477N has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

• Chemical system: Li / MnO2
• Nominal Voltage: 3 V
• Rated Capacity: 950 mAh
• Standard Discharge Current: 1.0 mA
• Max. Cont. Discharge Current: 2.5 mA
• Average Weight: 8.3 g
• Operating Temperature* : -40 - +85 °C
• Self Discharge: < 1% / year

Features:-

• An optimised volume/capacity ratio
• Dimensional precision and stability
• High capacity retention on storage
• Excellent reliability thanks to a uniformly high-quality level
• State of the art leakproofness thanks to a  sophisticated sealing process
• Constant availability

Common Use :

Renata battery generally used in Calculator, Watch, Clocks, LED Lights, Camera, headset, Wireless devices, weight scales, Pins entry devices, Car remote keys, Keyboard, Mouse etc.

Includes:

10 x Renata CR2477N Watch Batteries

Renata LR44 Watch Battery Replacement :

10X Renata Lr44 (2-Pack) Watch Battery Swiss Made Batteries Lr44 A76 V13Ga Rw82 Ka 280-904 Sb-F9 Lr1154 Alkaline 1.5V Coin Cell, with Long Expiry date

Watch Battery. Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, Renata LR44 (2-PACK) has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-

• Chemical system: Zinc / Manganese Dioxide, high drain
• Nominal Voltage:1,50 V
• Capacity: 105 mAh, Discharge over 8,25 kΩ at 20°C to 0,9 V
• Internal Resistance: Below 20 Ω at 20°C
• Operating Temperature* : 0°C - 60°C
• Self Discharge: Less than 10% per year at 20°C
• Weight: ~1,75 g

Dimensions(according IEC 60086-3):-


• Diameter: 11,60 mm (0,457")
• Height: 5,40 mm (0,213")

Discharge Curve:-


• Constant Load: 8,25 kΩ
• Starting Drain: 181,8 μA
• Temperature: 20°C

Features:-

• An optimised volume/capacity ratio
• Dimensional precision and stability
• High capacity retention on storage
• Excellent reliability thanks to a uniformly high-quality level
• State of the art leakproofness thanks to a  sophisticated sealing process
• Constant availability

Common Use :

Renata battery generally used in Calculator, Watch, Clocks, LED Lights, Camera, headset, Wireless devices, weight scales, Pins entry devices, Car remote keys, Keyboard, Mouse etc.

Includes:

10 x Renata LR44 Batteries LR1154 (2-PACK)
