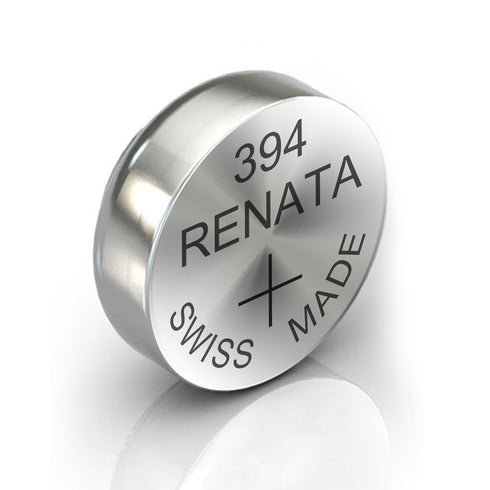

10x Renata 394 Watch Battery SR936 Swiss Silver Oxide Coin Cell 1.55V
SKU: GC_RNT 394 10X _Q0020 SML
AVAILABILITY: In stock (19793 items)
VENDOR: Renata
10x Renata 394 Watch Battery Swiss Made Batteries Sr936Sw V394 D-394 625 280-17 Sb-A4 Sr936 Silver Oxide 1.55V Coin Cell, 0% Mercury free with Long Expiry date
Renata 394 SR936SW Watch Battery, Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, RENATA has first-hand knowledge of what a high-quality watch battery must stand for.
Specifications:-
- Chemical system: Zinc / Monovalent Silver Oxide, low drain
- Nominal Voltage:1,55 V
- Capacity: 84 mAh, Discharge over 10,0 kW at 20°C to 1,2 V
- Operating Temperature* : -10°C €“ 60°C
- Self Discharge: Less than 5% per year at 20°C
- Weight: ~1,02 g
Dimensions(according IEC 60086-3):-
- Diameter: 9,50 mm (0,374€œ)
- Height: 3,60 mm (0,142€œ)
Discharge Curve:-
- Constant Load: 10,0 kW
- Starting Drain: 156 μA
- Temperature: 20°C
Features:-
- an optimized volume/capacity ratio
- dimensional precision and stability
- high capacity retention on storage (low self-discharge)
- excellent reliability thanks to a uniformly high-quality level
- state of the art leak-proof ness thanks to a sophisticated sealing process
- constant availability
