1X Renata Watch Battery Swiss Made Batteries 377 Sr626Sw V377 D-377 606 Ba 280-39 Sb-Aw Sr66 Sr626 Silver Oxide 1.55V Coin Cell


Write a review

Renata

9957 In Stock

Regular price £1.25

1X Renata Watch Battery Swiss Made Batteries 377 Sr626Sw V377 D-377 606 Ba 280-39 Sb-Aw Sr66 Sr626 Silver Oxide 1.55V Coin Cell

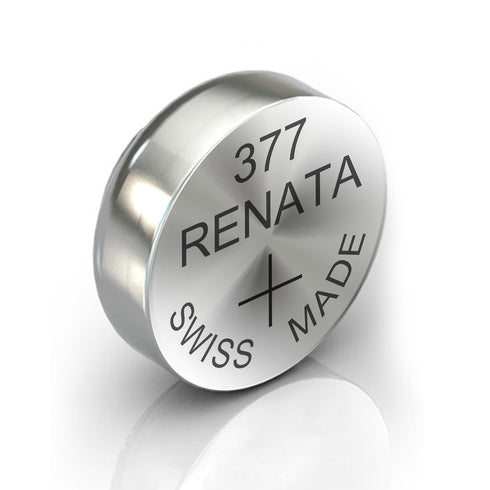

Renata 377 Swiss Made Lithium Button/Coin Cell Watch Battery SR626SW, 0% Mercury free with Long Expiry date

Renata 377 SR626SW Watch Battery, Renata's make over 40 different watch battery types, mostly silver oxide 1.55 Volt, this offers a suitable power source for any electronic device requiring an ultra-compact, long lasting, low voltage power source. Thanks to its close association with the Swiss watch industry, RENATA has first-hand knowledge of what a high-quality watch battery must stand for.

Specifications:-
  • Chemical system: Zinc / Monovalent Silver Oxide, low drain
  • Nominal Voltage:1,55 V
  • Capacity: 28 mAh, Discharge over 34,8 kΩ at 20°C to 1,2 V
  • Operating Temperature *: 0°C - 60°C
  • Self Discharge: Less than 5% per year at 20°C
  • Weight: ~0,40 g
Dimensions(according IEC 60086-3):-
  • Diameter: 6,80 mm (0,268 ")
  • Height: 2,60 mm (0,102")
Discharge Curve:-
  • Constant Load: 34,8 kΩ
  • Starting Drain: 44,8 μA
  • Temperature: 20°C
    Features:-
    • an optimised volume/capacity ratio
    • dimensional precision and stability
    • high capacity retention on storage (low self-discharge)
    • excellent reliability thanks to a uniformly high-quality level
    • state of the art leakproofness thanks to a  sophisticated sealing process
    • constant availability

    Includes:

    • 1 x Renata 377 SR626SW Batteries.
